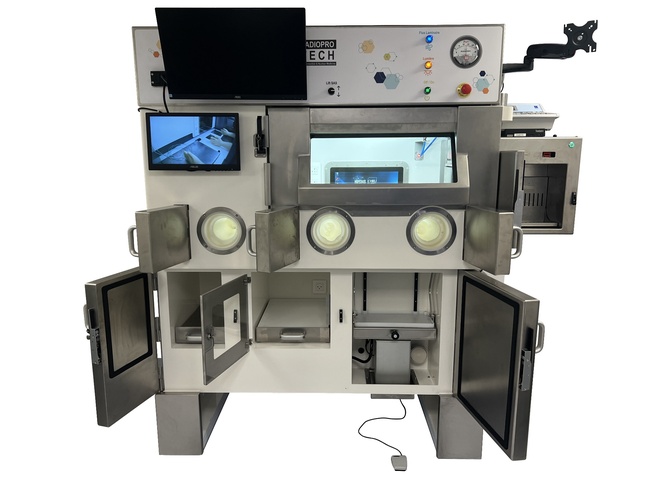

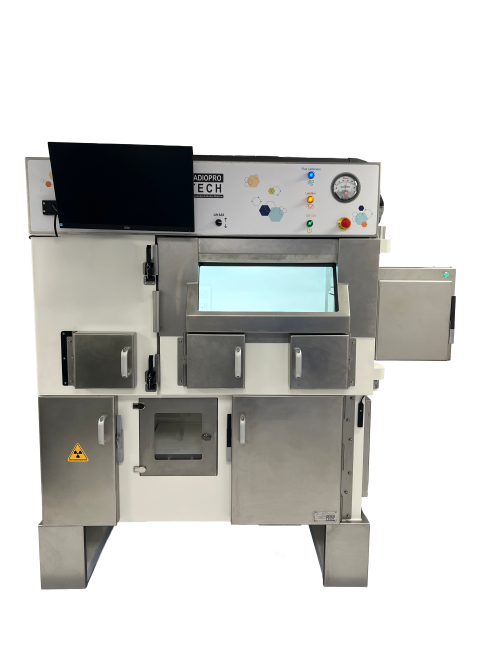

3 GP XL shielded isolator for gallium
Use
The F1350-50R is a Class A shielded isolator designed for the preparation and measurement of high energy radiotracers, such as gallium.
Characteristics
In particular, it integrates:
- A compartment for two generators Ge/Ga,

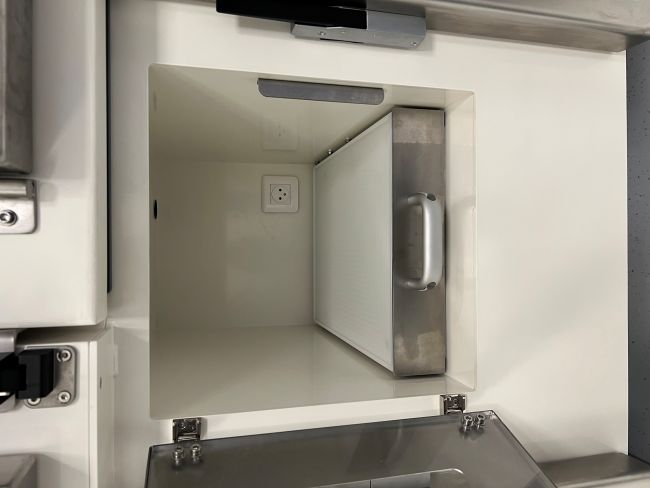

- A compartment for HPLC,
- A compartment for the ionisation chamber of the dose calibrator,

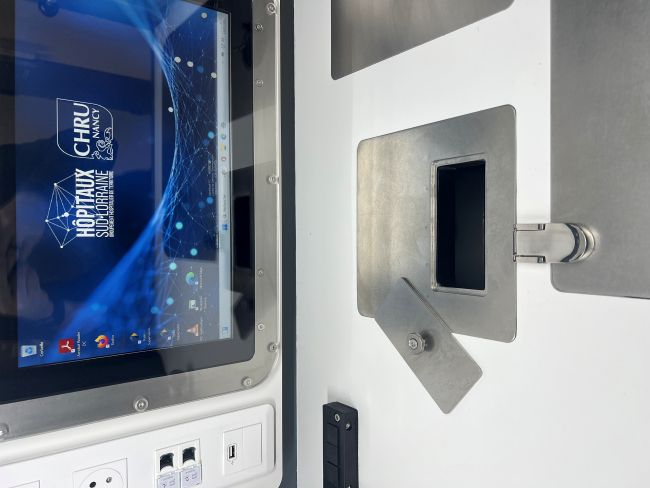

- A compartment for 2 bins.
But also:
- 3 glove ports,

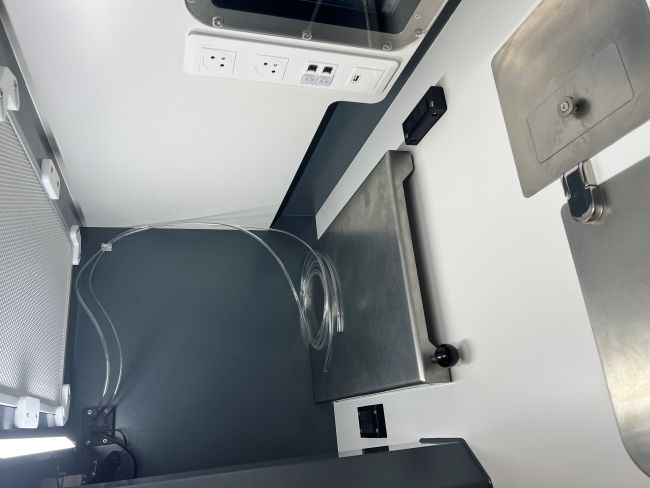

- LED worktop lighting and UV germicidal tube (optional),

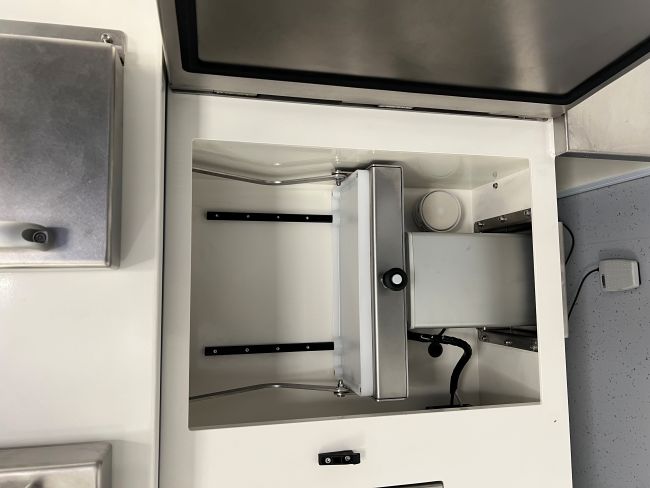

- Frontal exit transfer chamber
- Sockets inside the shielded isolator,
- Sliding tray for synthesis module,
- Material entry/exit chamber.
Dimensions and weight
Dimensions: H 2010 mm x W 2189 mm x D 950 mm
Weight: 4 630 kg
